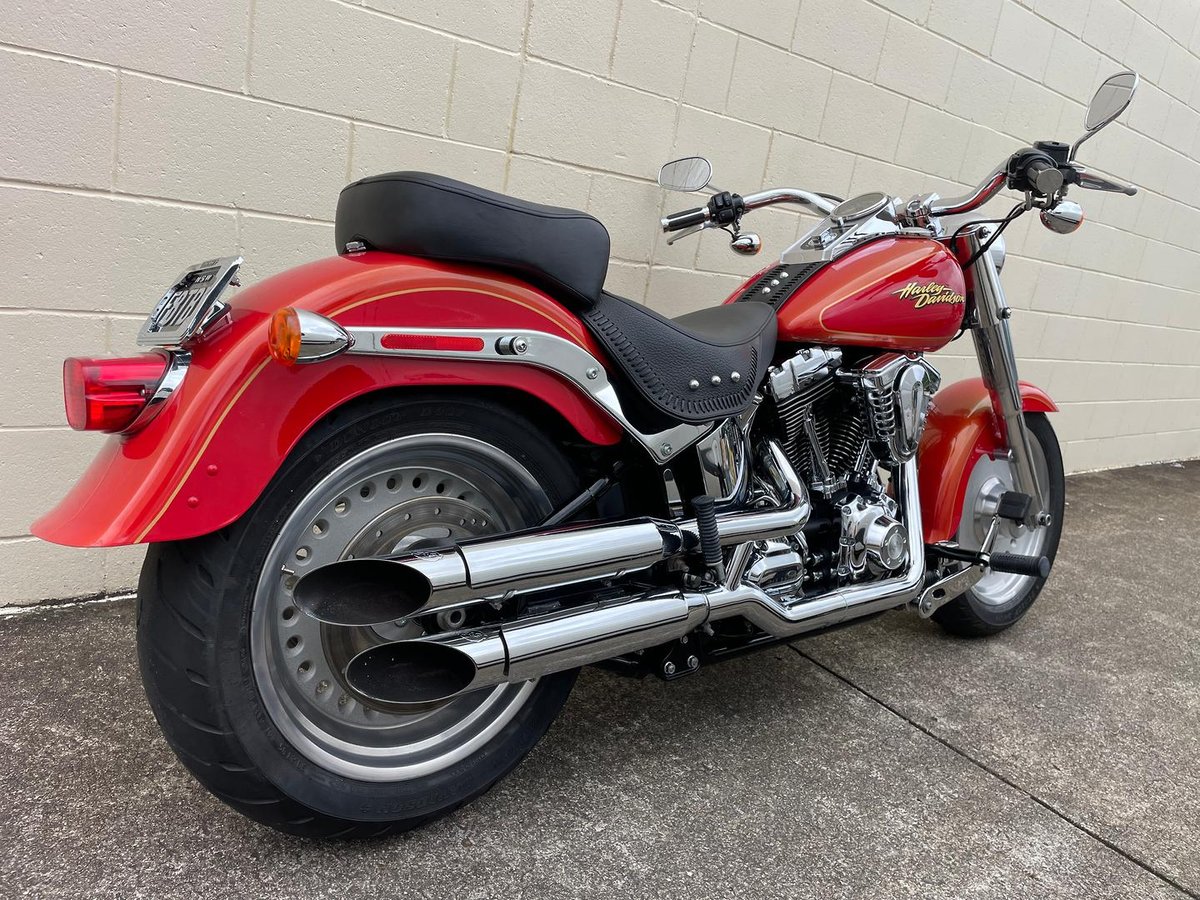

2008 Harley-Davidson Fat Boy 96 (flstf) Softail

Features

• EngineSize: 1584
• EngineType: Piston
• FuelCapacity: 18.9
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Cruiser (1201 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 95.25mm
• Stroke: 111.25mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 2
• Compression Ratio: 9.2:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection
• Cooling: Air
• Exhaust Description: Chrome, over/under shotgun system; Twin mufflers
• Maximum Torque: 118.65Nm
• Maximum Torque RPM: 3300
• Ignition: Digital Electronic
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Alternator & Regulator-Rectifier
• Recommended RON: 95
• Gear Change Method: Left foot pedal; Heel & Toe Shift
• Clutch Type: Wet; 9-plate; Diaphram Spring
• Chassis Description: Rectangular section backbone; stamped, cast, & forged junctions; forged fender supports; MIG welded
• Side Stand: Standard
• Front Suspension: 41.3mm Telescopic fork; Hydraulic damping; "Beer Can" covers
• Front Suspension Travel: 129.5mm
• Rear Suspension: Twin, Undermounted hidden, horizontally mounted shock absorbers; Adjustable
• Rear Suspension Travel: 109.2mm
• Swingarm Type: Dual sided; Triangulated
• Front Brake Description: Single uniform expansion rotor/disc; Hydraulic DOT 4
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 292.0mm
• Rear Brake Description: Single uniform expansion rotor/disc; Hydraulic DOT 4
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 292.0mm
• ABS: Not Available
• Linked Braking System: Not Available

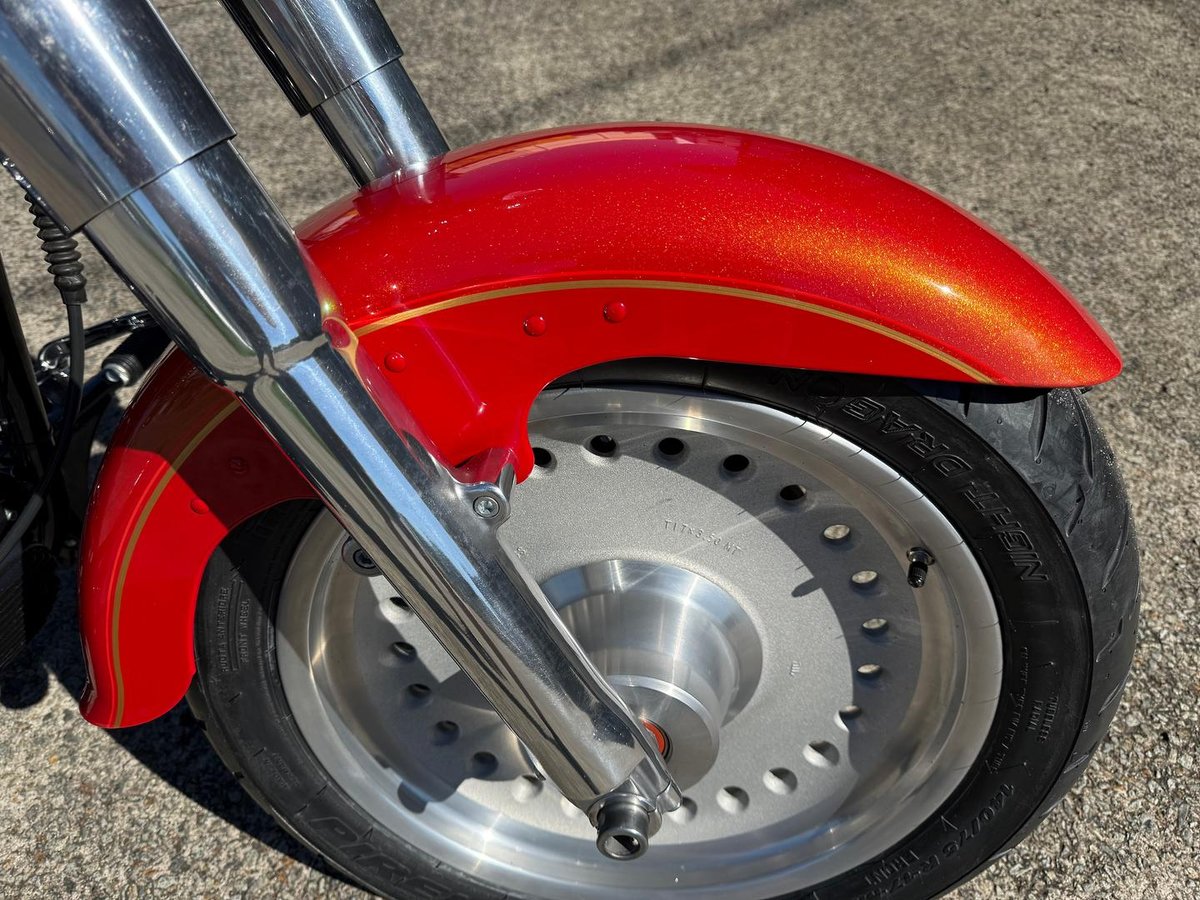

• Wheel Type: Silver; Bullet Hole Disc; Cast Aluminium
• Wheel Size Front: 3.5x18" (88.90x457.20mm)
• Wheel Size Rear: 6.0x17" (152.4x431.8mm)
• Rear Tyre: 200/55-R17" (78V) Dunlop D407 Harley-Davidson series
• Front Tyre: 140/75-R17" (67V) Dunlop D407F Harley-Davidson series
• Length: 2396mm
• Width: 996mm
• Height: 1130mm
• Wheelbase: 1635mm
• Wet / Operational Weight: 323.86kg
• Seat Height: 699mm
• Seating Capacity: 2
• Traction Control: Not Available
• Lock Type: Fork Lock with Key (Steering Stem)

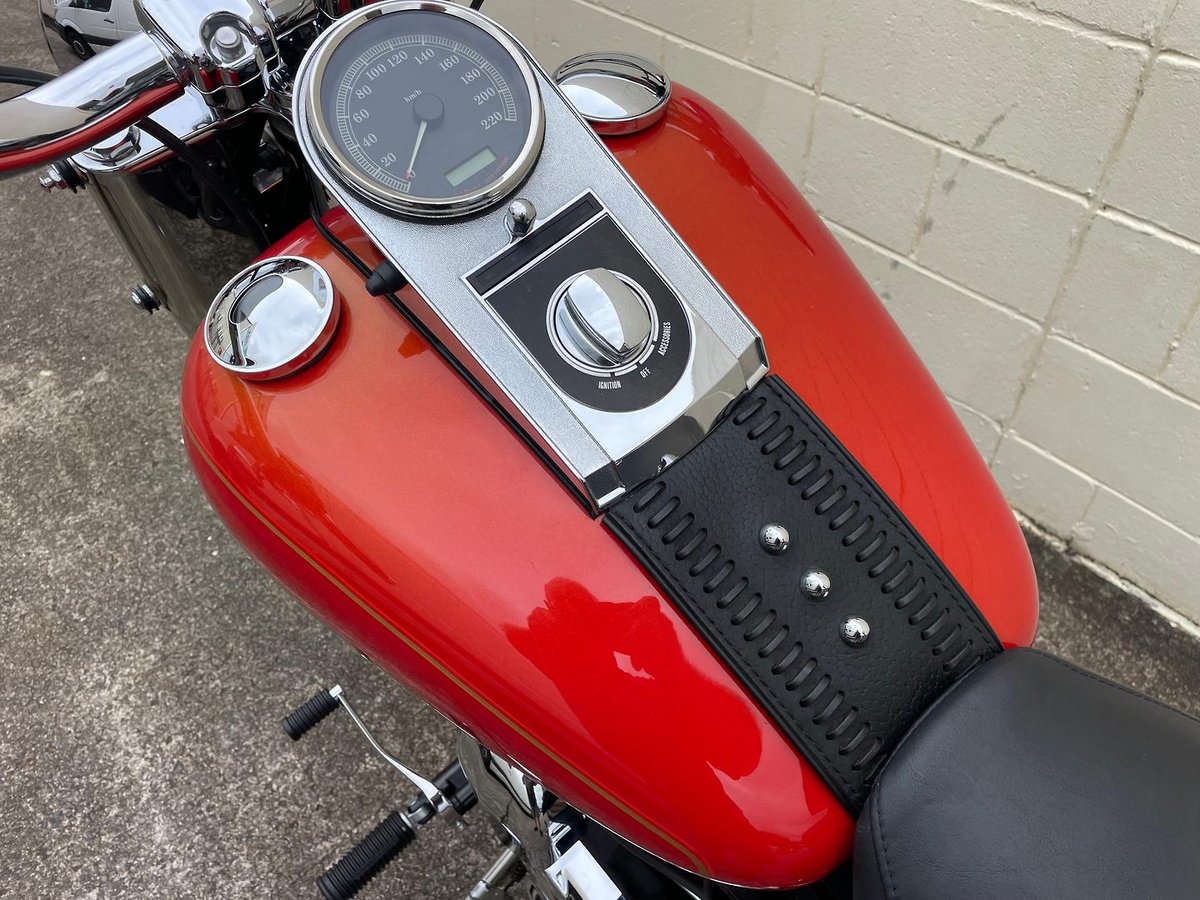

• Instruments / Dash Description: Mounted on Fuel Tan; Speedometer; Odometer; 2 x trip meters; Clock. Indicator lamps for: turn signals, High beam, Neutral, Oil, 6th gear, Check engine, Low Fuel, Battery, Security System
• Seat Description: Two-up; bullet laced valence
• Windscreen: Optional

_{Please confirm all features with dealer.}
